Soil Compaction: Optimizing Soil Density for Construction

Understanding Soil Compaction

Soil compaction is the densification process that reduces the void ratio of soil by expelling air. Essentially, soil compaction involves closely packing soil particles, which increases soil density and decreases the volume of air within the soil. Notably, this process doesn’t significantly change the volume of water in the soil.

The Compaction Process in Construction

During the construction of fills or embankments, loose soil is typically placed in layers that range from 75 to 450 mm in thickness. Each layer is then compacted to a specified standard using rollers, vibrators, or rammers. The degree of soil compaction directly impacts soil properties like bearing capacity, shear strength, settlement, and permeability. A higher degree of compaction yields soil with high shear strength, low compressibility, and low permeability, also controlling swelling and shrinkage characteristics.

Granular soils compact easily via vibration, while saturated cohesive soils resist dynamic loads due to the viscous resistance of pore water pressure.

Evaluating Soil Compaction

The degree of soil compaction is measured in terms of dry density, defined as the mass of soil solids per unit volume of soil. For a soil with bulk density (ρ) and water content (w), dry density (ρd) can be expressed as:

The dry density of a compacted soil sample depends on its water content and the energy applied during compaction—known as the compaction effort.

Laboratory Compaction Tests

Standard laboratory tests can evaluate soil compaction characteristics:

• Standard Proctor Test: In this test, a soil sample (with particles larger than 20 mm removed) is compacted in a 1-liter cylindrical mold using a 2.5 kg rammer falling from 300 mm. The sample is compacted in three layers, each receiving 27 blows.

• Modified AASHTO Test: This test uses the same mold as the Standard Proctor Test but with a 4.5 kg rammer falling from 450 mm. The sample (with particles larger than 20 mm removed) is compacted in five layers, each receiving 27 blows.

After compaction, the soil’s bulk density and water content are determined to calculate the dry density. The process is repeated at least five times with increasing water content to plot dry density versus water content, forming a characteristic curve.

Optimum Water Content and Dry Density

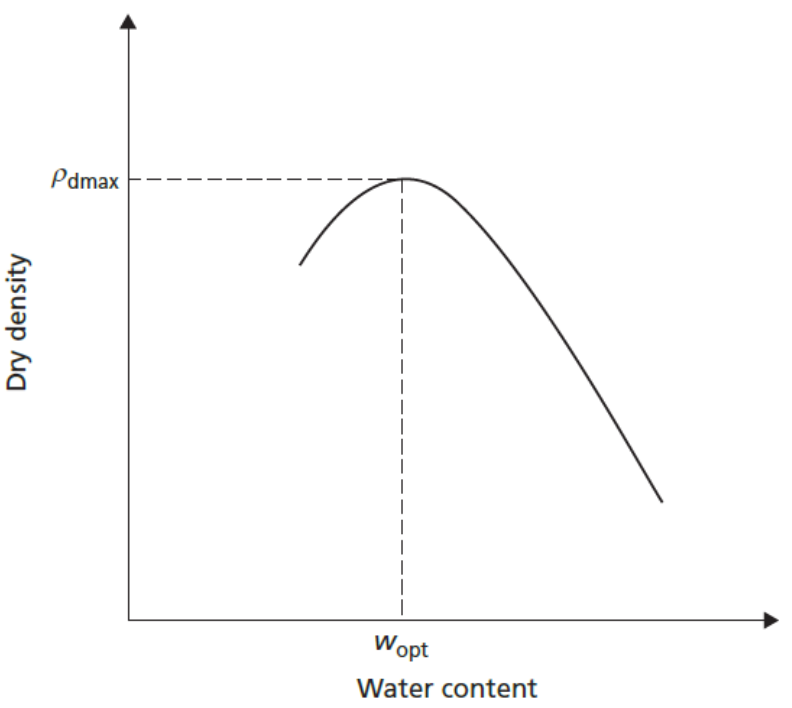

The curve obtained from this testing shows that a specific method of compaction, with a given compaction effort, yields a maximum dry density at a particular water content—referred to as the optimum water content (w_opt). At lower water contents, the soil is stiff and hard to compact, whereas moderate moisture levels make the soil more workable, resulting in higher dry densities. Beyond a certain water content, increased water reduces dry density because more soil volume is occupied by water.

Theoretical maximum dry density at full saturation is termed zero air void dry density (ρd0) but is unachievable in practice.

Impact of Compaction Effort

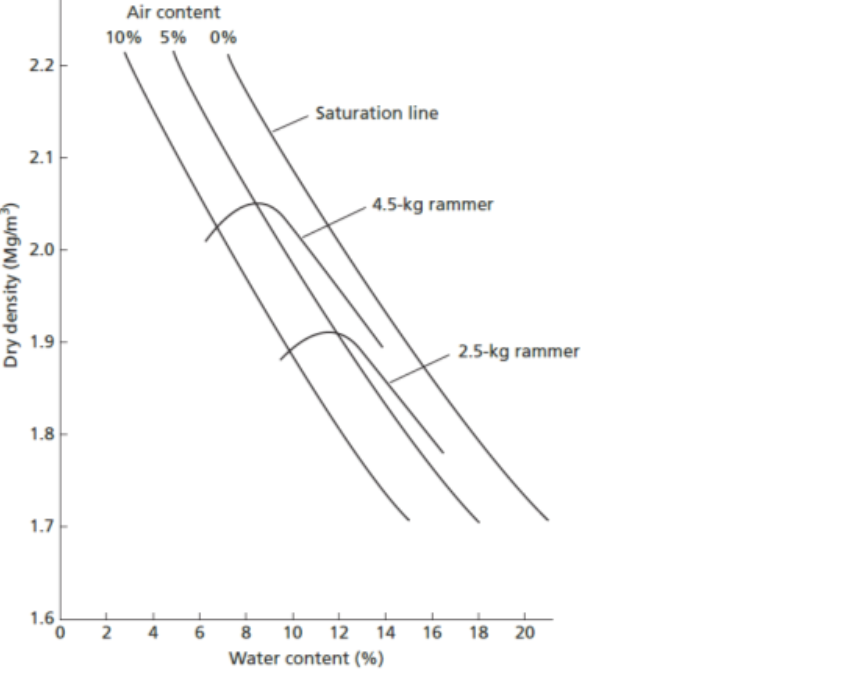

Different compaction efforts produce different dry density-water content curves. For example, curves for 2.5 kg and 4.5 kg rammers show that higher compaction effort results in higher maximum dry density at a lower optimum water content. However, air content at maximum dry densities remains roughly constant.

Soil Types and Compaction

Coarse soils typically achieve higher dry densities than fine soils due to their particle size and distribution.

By understanding and optimizing soil compaction, construction projects can ensure foundational stability, minimize settlement issues, and enhance soil performance characteristics.
